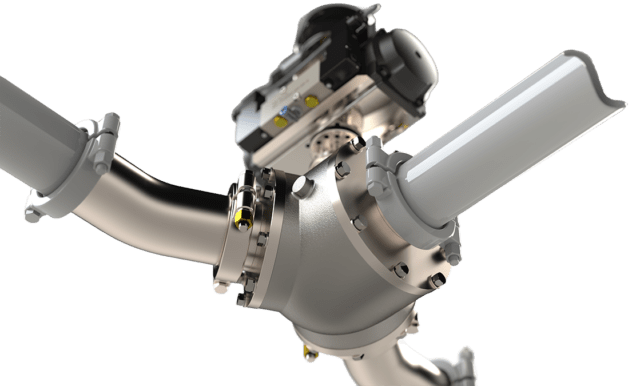

Piggable Diverter Valves

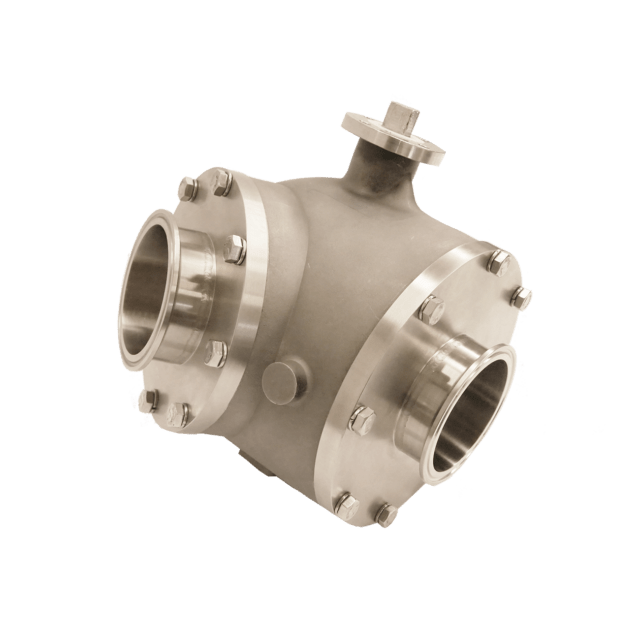

The Solid Seat Ball Valve (SSBV) from HPS is a high-performance piggable diverter valve designed for seamless product flow in process applications such as food and beverage manufacturing, chocolate production, chemical processes, and more.
Unlike standard diverter valves, the HPS SSBV is fully piggable, enabling full product recovery in demanding process environments.
Engineered to optimize your pipeline system, the SSBV ensures smooth, uninterrupted flow, making it the ideal solution for efficient product transfer.
Whether diverting flow from one source to two selectable positions or from multiple sources to a single destination, our advanced valve technology meets your specific needs with ease.
download our brochure
Want to learn more about the HPS Piggable Diverter Valve? Download our brochure and explore its applications, features, options, specifications, and much more.
Seamless Product Transfer
Optimal Pigging Performance
Minimal Maintenance
Robust and Reliable
Easy Maintenance and Cleaning
High Versatile
available sizes:
The HPS SSBV is available in sizes ranging from 1.5 inches to 4 inches. DIN and Schedule size options are also available.
Available Options
- Water Jacketing
- Wash Ports
- 30 Degree Installation Bends
- Available with Customer Designated Connection Types
- Automation options available on request
The HPS SSBV is also available in a range of seats and seals to match your process requirements.
optimum efficiency with the ssbv
The SSBV can be completely dismantled and offers a clear passage, which means no pressure loss.
It provides optimum efficiency for pigging situations and has been designed for use with HPS pigs, although it can be used in installations without pigging to aide process routing.
can be used as pig launchers
When using an HPS SSBV as a Pig Launcher, it takes away the need for a traditional two valve ‘T’ launch arrangement. This single valve arrangement can be attached to the outlet port of the pump and allows product to pass through a full bore path while in the transfer position.
When transfer is complete the valve will rotate to the Pig Launch Position, opening a path for the Pig to enter the transfer line, while blocking the path from the pump outlet port.
The Pig is isolated in an offline housing when not in use, allowing access for Pig inspection or replacement during normal product transfer. These Pig Launchers can be mounted in the horizontal or the vertical orientation.
Piggable Sweeping Bend

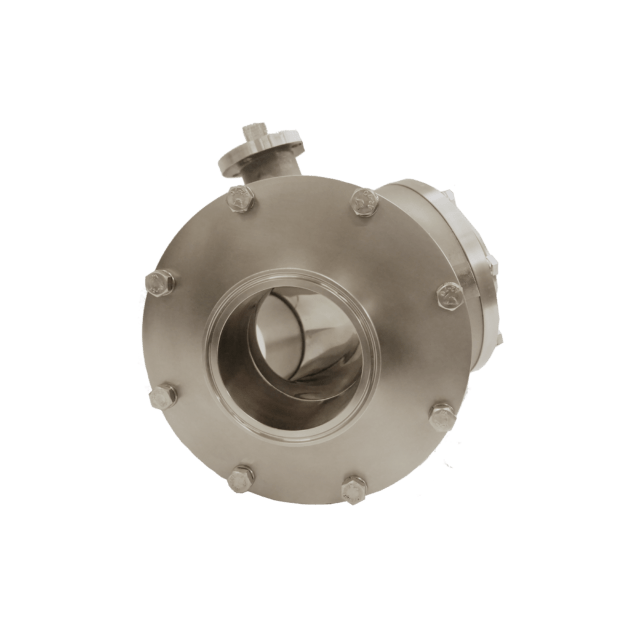

The solid stainless ball within the valve comprises a 120° piggable sweeping bend, which allows for smooth passage for the pipeline pig. The ball rotates 120° between ports allowing for unobstructed product flow and no pressure loss.
easy to use and maintain
The valve can easily be fully disassembled, allowing for easy maintenance and cleaning. The PTFE seats sit on O-rings within the flange allowing for a floating seat arrangement.
