Pigging System Design

Pigging System Design: Ensuring Success

Designing a pigging system to operate effectively, efficiently, and safely is paramount for the success of any product recovery project. And it takes years of experience and practice to get it right.

That’s why HPS provides high-quality custom pigging system design services to ensure the success of your project.

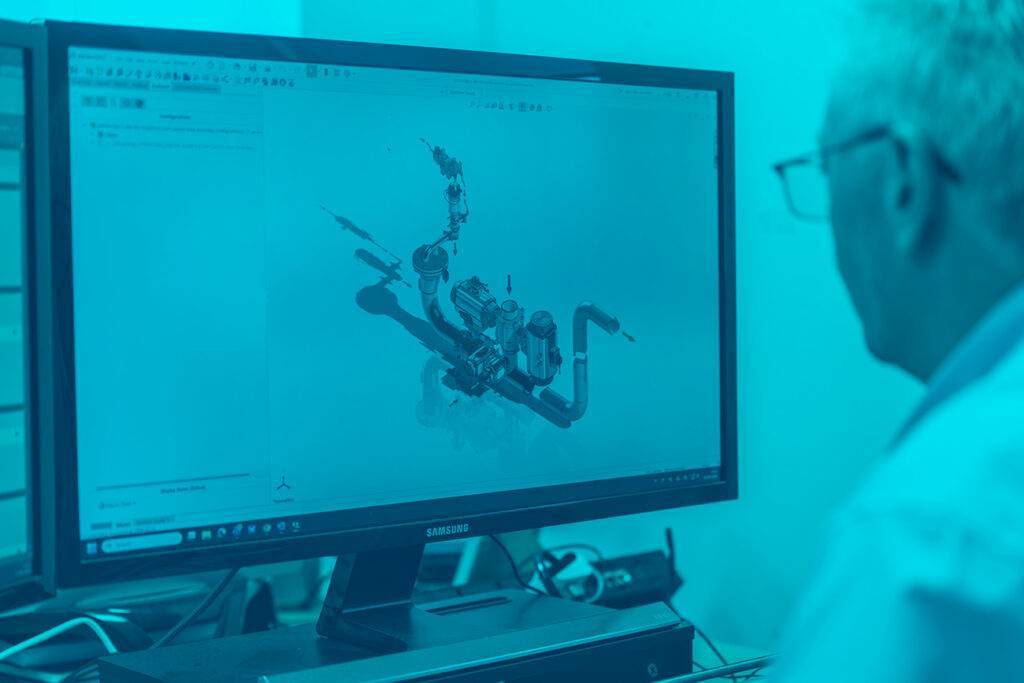

pigging system design

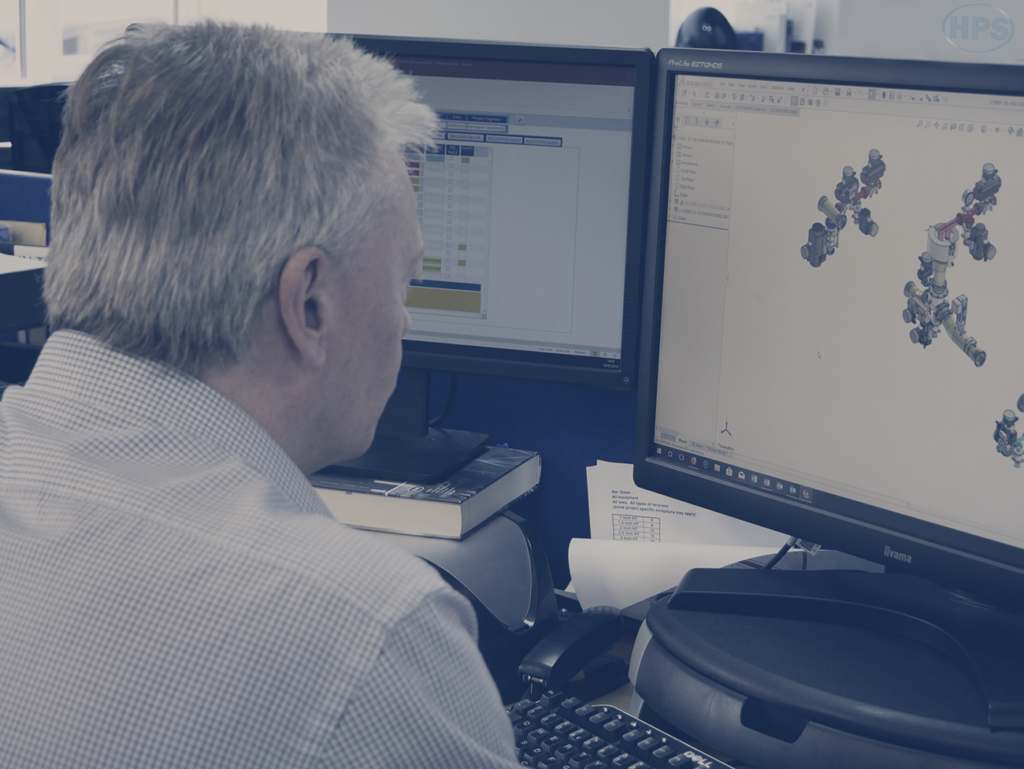

hps pigging system design

Tailored Pigging Design Solutions by HPS:

Maximize the capabilities of your pigging system with our bespoke design services, tailored to precisely match your requirements and specifications. They include:

    • Comprehensive Pigging System Design, Planning and Implementation
    • Custom Pigging Systems Designed to your Precise Requirements
    • Design of New Systems or Adaptations to Existing Plant
    • High Quality Bespoke Solutions that are Safe, Efficient and Effective
    • Extensive Hygienic Processing Expertise and Experience
    • Pigging System Designers in our UK, USA and Australia offices
    • Component Manufacture, Procurement, and Supply
    • Operator Procedures, Documentation and Training
    • Aftersales, Spares and Ongoing Support

Although we can supply all the components you need to build a pigging solution, the success (and safety) of your project comes down to design, implementation, commissioning, training and maintenance.

That’s why, to ensure you get the full benefits of pigging, we strongly recommend you use the comprehensive range of pigging system design services the team of HPS designers provide.

Get in touch with the experts


Ready to optimise your liquid processing with custom pigging system design? Reach out to HPS today to get started on maximizing your efficiency, productivity, and sustainability.

Contact HPS  Pigging System Quote

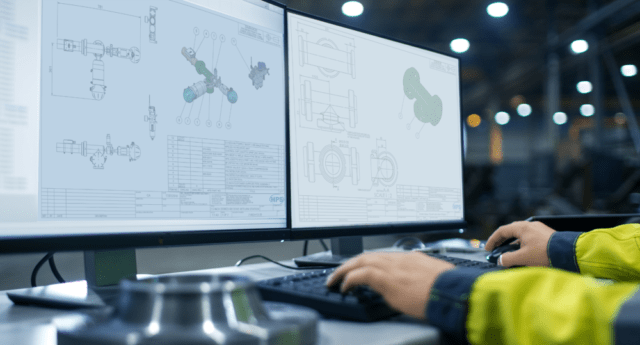

pigging system design drawing

Contact HPS Early On

The principle of pigging, that is, sending a tight-fitting projectile through a pipeline to force out residual product, is straightforward. However, to design an effective pigging system for any particular liquid process requires extensive expertise and experience. In other words, a team of highly experienced pig system designers, like the team at HPS!

That’s because there’s a lot to take into account. For example, length and diameter of pipeline, pipeline material, type of propellant, viscosity of the liquid or liquids, pumping pressures, temperatures, types of couplings, number of sources and destinations, whether the product needs protection from air, whether it tends to foam, the number and frequency of changeovers, types of valves used, and so on.

To ensure the success of your pigging system, we strongly recommend you contact HPS expert designers at the early stages of your project. They’ll work closely with you to deliver a successful system: one that meets your objectives, does what you need it to do, avoids any pitfalls and provides a rapid return on investment. In other words, the friendly, experienced and knowledgeable team of pigging system designers at HPS will ensure you get it right.

Get a Pigging System Quote >>
