PIGGABLE ROTOMATRIX ROTARY MANIFOLD

Whatever You Process, the HPS Rotomatrix Can Help

The HPS Piggable Rotomatrix massively increases the flexibility of your processes, while saving time and labour, and minimising the chances of connection errors.

It’s a highly cost-effective way to quickly and reliably connect pipelines from multiple sources to multiple destinations. It enables fully flexible product distribution and product recovery (pigging) from any source to any destination.

Rotomatrix

why use the hps PIGGABLE ROTOMATRIX

The HPS Rotomatrix is used with a wide variety of products. It’s common in processing everything from cosmetics to paints, and from pet food to wineries and bottling plants. The vast improvements it makes to safety, process speed and efficiency, reliability, plant layout and waste reduction, combined with its low initial cost, low cost of ownership and its high return on investment, means HPS Rotomatrix use is rapidly increasing throughout many sectors.

icon tick

Quickly and reliably connect multiple sources to multiple destinations

You’ll manually be able to quickly and reliably connect pipelines from multiple sources to multiple destination.
icon tick

Fully piggable from start to finish

The HPS pig can travel all the way through and reclaim residual product. Quickly, safely, and reliably.
icon tick

Increase Space Efficiency

The Rotomatrix reduces your dedicated lines and gets rid of hoses. This makes your layout a lot tider, space-efficient and safer.
icon tick

Improve Safety

By removing hoses, you’re also removing common trip-hazards which enhances safety.
icon tick

Minimise Connection Errors

By using rotating arms to connect different sources to different destinations combined with other features, this reduces the chances of sending product to the wrong destination.
icon tick

Highly Cost-Effective

The Rotomatrix robust design does not include valves. This means a low initial cost, low cost of ownership and a high return on investment.
icon tick

Purpose-Designed

Used in wide range of processes ranging from wine to bottling plants, cosmetics, and personal care. It’s an ideal replacement for traditional flow plates or bend panels.
icon tick

High Performance

So, because the high-performance Rotomatrix is piggable, it will increase your yields, reduce product waste, steamline changeovers and decrease flush water and CIP chemicals.

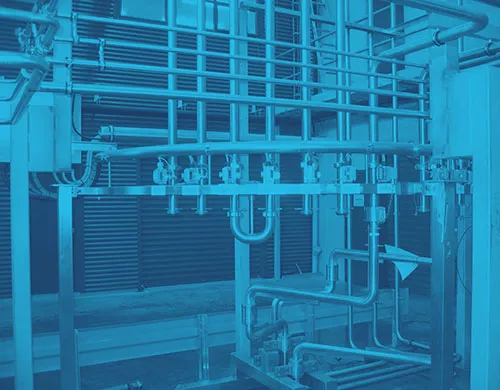

HPS rotomatrix piggable rotary manifold

Improve Safety, Increase Space Efficiency

The HPS Rotomatrix is a piggable manifold which uses a compact set of rotating arms. This helps you reduce your dedicated lines, get rid of hoses, and makes your layout a lot tidier, space-efficient and safer.  By removing hoses, you’re also removing common trip-hazards. And by reducing your number of dedicated lines you’ll immediately increase process efficiency and gain more space.

Fully Piggable to Increase Your Yields and Reduce Waste

Because there are no valves, pockets or dead space in a Rotomatrix-based piggable manifold system, it is fully piggable from source to destination. Manufactured using hygienic tube, each arm has a pig launcher located directly after the pump. Each destination has a pig receive and return station. This means any pig can be sent to and returned from any destination.

So, because it is piggable, a Rotomatrix will increase your yields, reduce product waste, lower changeover times and save flush water and CIP chemicals. The ultimate result is lower production costs and increased profits.

Contact Us

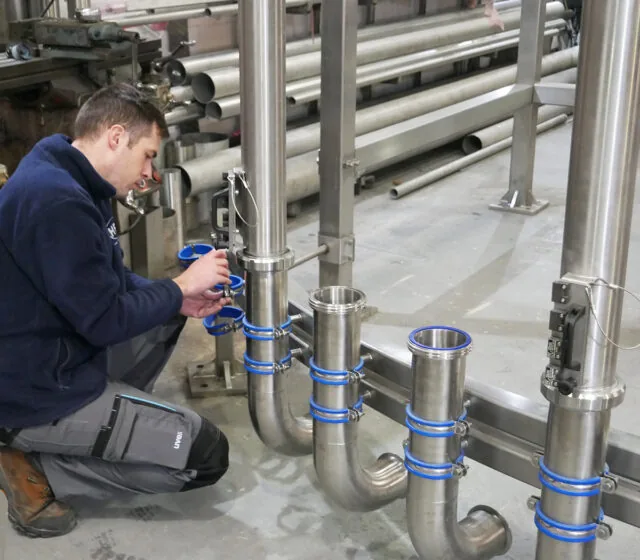

HPS rotomatrix rotary manifold

Low Cost of Ownership and High ROI

The Rotomatrix is an established HPS liquid transfer product. The straightforward, robust design does not include valves. This means a low initial cost, low cost of ownership and a high return on investment. It’s highly reliable, easy to maintain, and because operation is straightforward, it’s quick and easy to train your operators. So, there’s minimal downtime either for training or maintenance. And because of it’s functionality, it’s the ideal replacement for traditional flow plates or bend panels.

Minimise Connection Errors

By using rotating arms to connect different sources to different destinations combined with the use of mechanical couplings, interlocks and path selection feedback, the chances of sending product to the wrong destination is minimal. If an arm is not connected properly or it’s connected incorrectly, the Rotomatrix will not allow transfer of product.

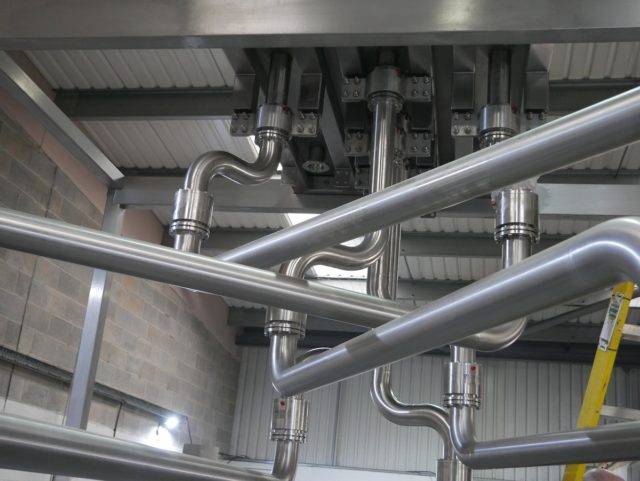

Rotary Manifold Rotomatrix HPS 7.

Designed and Built to Your Requirements

All factories are different. There are various ways we can design and configure your Rotomatrix to make sure it’s best suited to your requirements. HPS are the world’s leading liquid product recovery (pigging) and transfer specialists and will recommend a bespoke solution for you. Typically, you can choose from choose from 1½ to 4-inch hygienic tube diameters, and include from one to eight arms with up to 20 connections. What’s more, the designs are fully flexible to enable future expansion as required.

Whatever You Process, the HPS Rotomatrix Can Help

Whatever your requirements, HPS will design a Rotomatrix to meet your needs – contact us to find out more.
